Duplex 2205 · ASTM A815
Precision stainless piping for seawater desalination & heavy industry
Grand Metal supplies seamless pipes, elbows, round bars, reducers and Victaulic Model 77C grooved couplings in Duplex 2205 stainless steel — engineered for corrosion resistance and high-pressure performance.
5Product Lines
2″–6″Size Range
1200 psiCoupling Rating
ASTMA815 Certified Spec
Real product photography
Why Duplex 2205
Built for corrosive, high-pressure environments
Duplex 2205 combines an austenitic-ferritic microstructure that delivers roughly double the yield strength of standard austenitic stainless steels, along with excellent resistance to chloride stress-corrosion cracking and pitting — the standard choice for RO seawater desalination, marine and offshore piping.
High Corrosion Resistance
Superior resistance to chloride pitting and stress-corrosion cracking versus 304/316 grades.
High Mechanical Strength
Roughly double the yield strength of austenitic stainless, enabling thinner, lighter piping.
Desalination Ready
Specified for RO seawater desalination and MSF plants exposed to concentrated brine.
Certified Standards
Manufactured to ASTM A815 (fittings) and industry SCH 40 dimensional standards.
Table 1 · Fittings

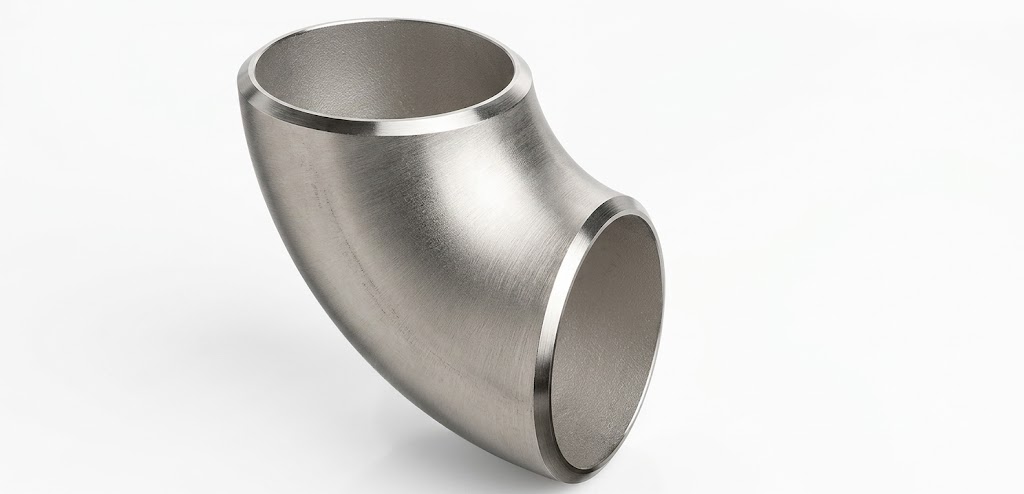

Duplex 2205 Elbows — 90° SCH 40 (ASTM A815)
Butt-weld 90-degree elbows manufactured from Duplex 2205 stainless steel to ASTM A815, Schedule 40 wall thickness. Used to change direction in high-pressure, corrosive pipelines — seawater desalination (RO/MSF), marine, offshore and chemical process systems — without sacrificing wall strength at the bend.
- MaterialDuplex 2205 Stainless Steel
- StandardASTM A815
- ScheduleSCH 40
- Angle90° butt-weld
- Sizes1″ – 6″
Chloride resistant
High pressure
Butt-weld end
Click a size to select
6″ · PCS
Table 2 · Line Pipe

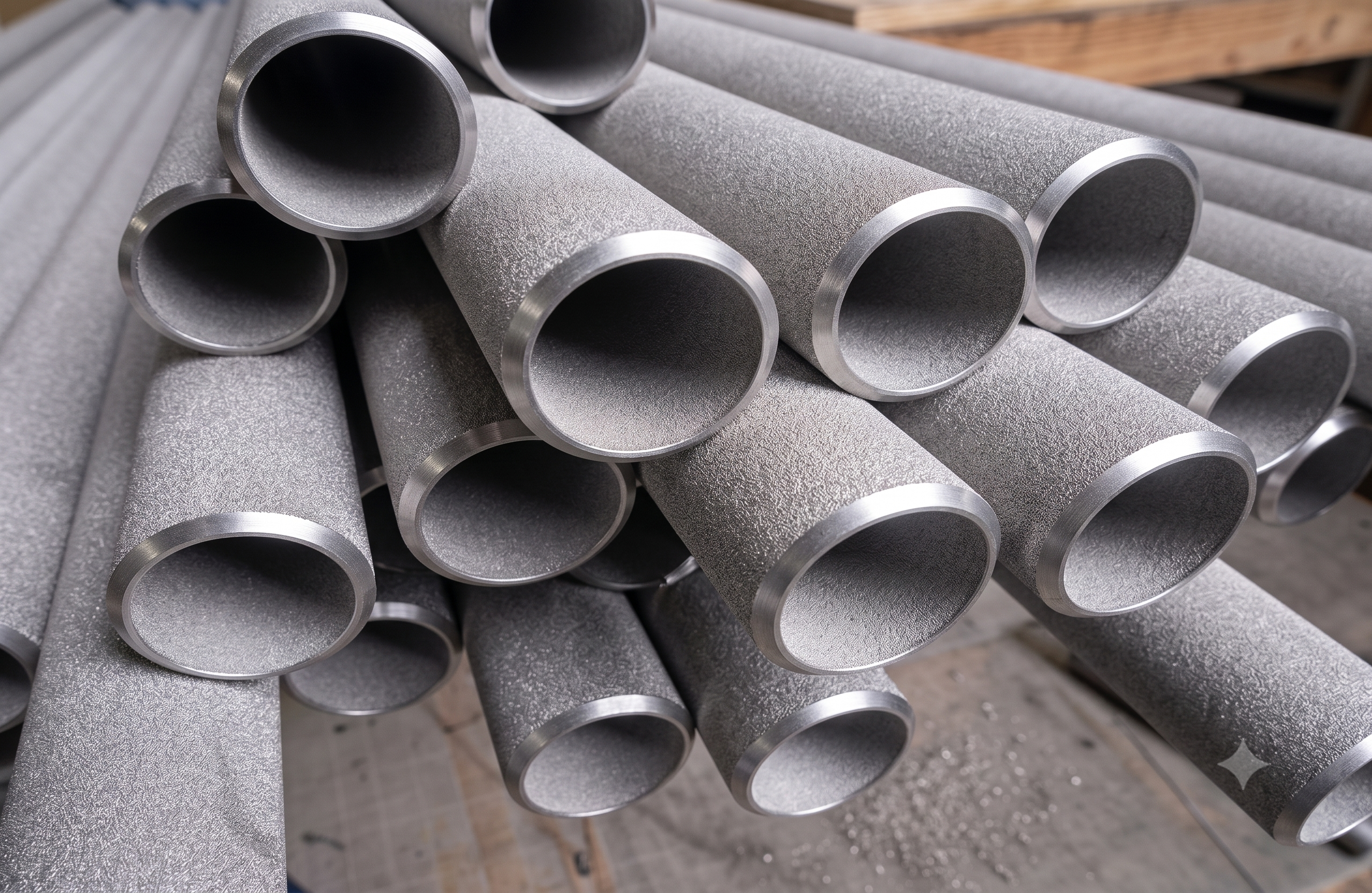

Seamless Duplex Pipes — SCH 40
Seamless line pipe in Duplex stainless steel, Schedule 40 wall thickness, sold per running metre. Seamless construction removes the weld-seam weak point found in welded pipe, giving consistent strength and corrosion performance along the full length — the primary line pipe for desalination trains and corrosive process lines.
- MaterialDuplex Stainless Steel
- ConstructionSeamless
- ScheduleSCH 40
- UnitSold per metre (MTR)
- Sizes1″ – 6″
No weld seam
Uniform wall
Cut to length
Click a size to select
6″ · MTR
Table 3 · Bar Stock

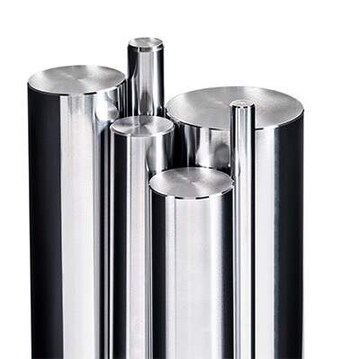

SS2205 & Duplex 2205 Round Bars
Solid round bar stock supplied in 5-metre standard lengths for machining flanges, shafts, valve stems, fasteners and custom fabricated parts that require duplex-grade strength and corrosion resistance. Available in SS2205 (22–70 mm) and Duplex 2205 (35 mm).
- MaterialSS2205 / Duplex 2205
- Length5 metres standard
- Diameter Range22 – 70 mm
- UnitPer piece (PCS)
Machinable
Solid stock
5m lengths
Click a size to select
70 mm · PCS
Table 4 · Fittings
Duplex 2205 Concentric Reducers — SCH 40 (ASTM A815)
Concentric reducers transition pipeline diameter on the centreline, keeping flow balanced and minimising turbulence versus an eccentric reducer — the preferred choice on pump suction and discharge lines in desalination and process plants. Manufactured in Duplex 2205 to ASTM A815, SCH 40.
- MaterialDuplex 2205 Stainless Steel
- StandardASTM A815
- ScheduleSCH 40
- TypeConcentric (centreline)
- Sizes6″ x 2.5″/3″/4″ · 4″ x 1.5″/2″/3″ · 3″ x 1.5″/2.5″
Low turbulence
Pump suction/discharge
Butt-weld end
Representative photo
Click a size to select
6″ x 4″ · PCS
Figure 5 · Victaulic Model 77C

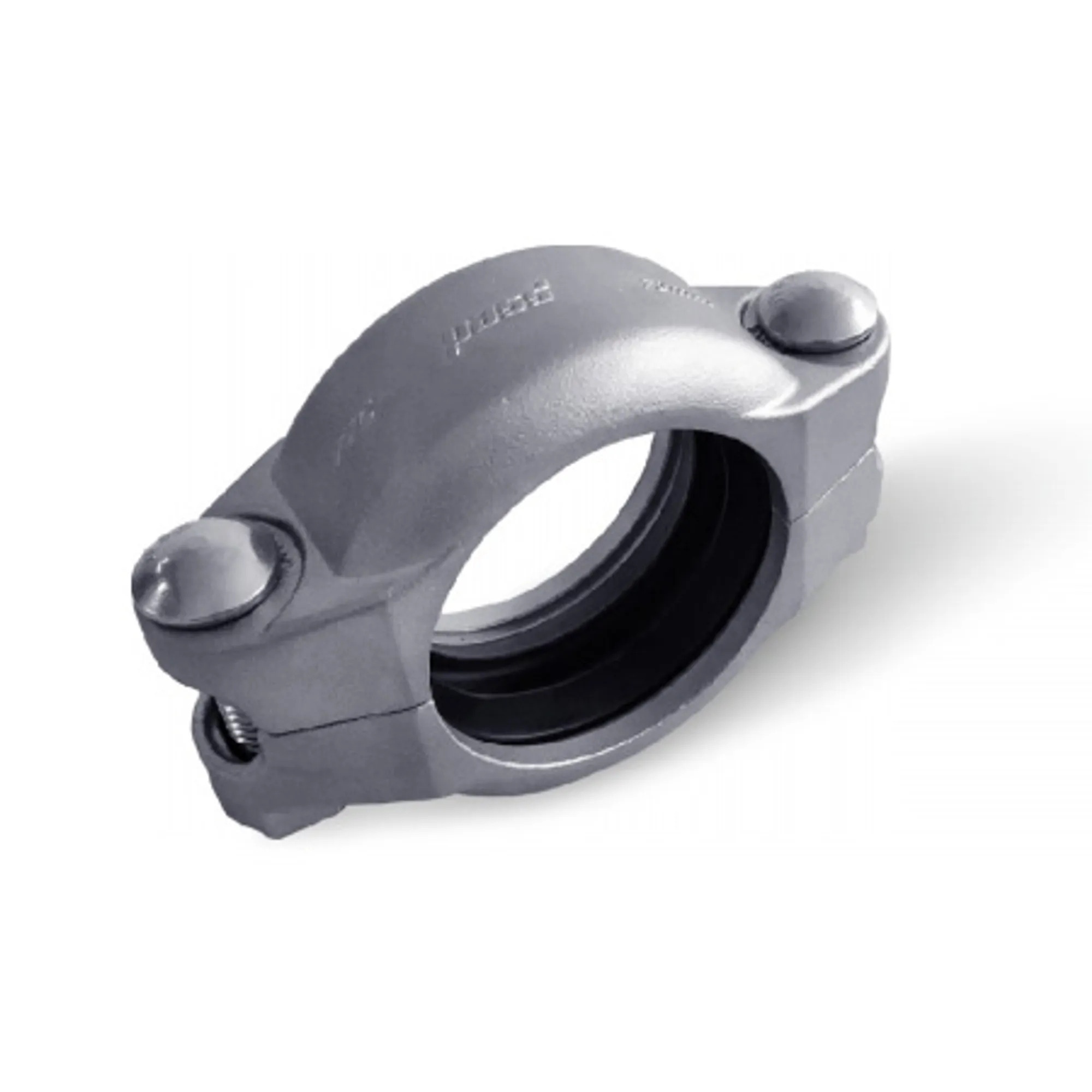

Victaulic Model 77C Rigid Grooved Coupling
The Victaulic Model 77C is designed for high-pressure grooved piping systems such as RO seawater desalination systems, rated to 1200 psi (83 bar) on cut-grooved pipe from 3/4″ to 12″ (DN20–DN300). Supplied in corrosion-resistant alloys including Duplex 2205 and Super Duplex 2507, with an EPDM C-shaped gasket and stainless bolts/nuts for long service life.
1200 psiRated Pressure (83 bar)
3/4″–12″Size Range (DN20–DN300)
Cut GrooveGroove Type
EPDMGasket (-30° to 110°C)
- Super Duplex 2507 (CE3MN) — ASTM A890 Grade5A
- CE8MN to ASTM A890 Grade 2A
- Duplex 2205 (CD3MN) to ASTM A890 Grade4A
- Austenic 254SMO (CK3MCuN) to A743
- Austenic 904L (CN2MCuN) to A351
- Type 316 to ASTM A351 CF8M
- Type 316L to ASTM A351 CF3M
C-shaped EPDM (ethylene propylene diene monomer) gasket for cold water, hot water, rare acid, oil-free air and multiple chemical products (-30° to 110°C). Not suitable for petroleum-based media.
- Type 304 stainless steel track bolts to ASTM F593
- Type 316 stainless steel track bolts to ASTM A193
- Type 304 stainless steel nuts to ASTM F594
- Type 316 stainless steel nuts to ASTM A194
- Silicone bronze heavy duty nuts to ASTM B98 C65100 for option
Representative photo
Click a size to select
1″ · PCS
RO Pre-Treatment · FRP & SS316
Cartridge & Bag Filtration for Desalination Pre-Treatment
Grand Metal supplies FRP cartridge filter housings, Parker-type replacement elements, multi-cartridge Victaulic-coupled housings and bag filtration systems — pre-treatment filtration for RO seawater desalination, wells and industrial process water.
Table 6 · Filtration

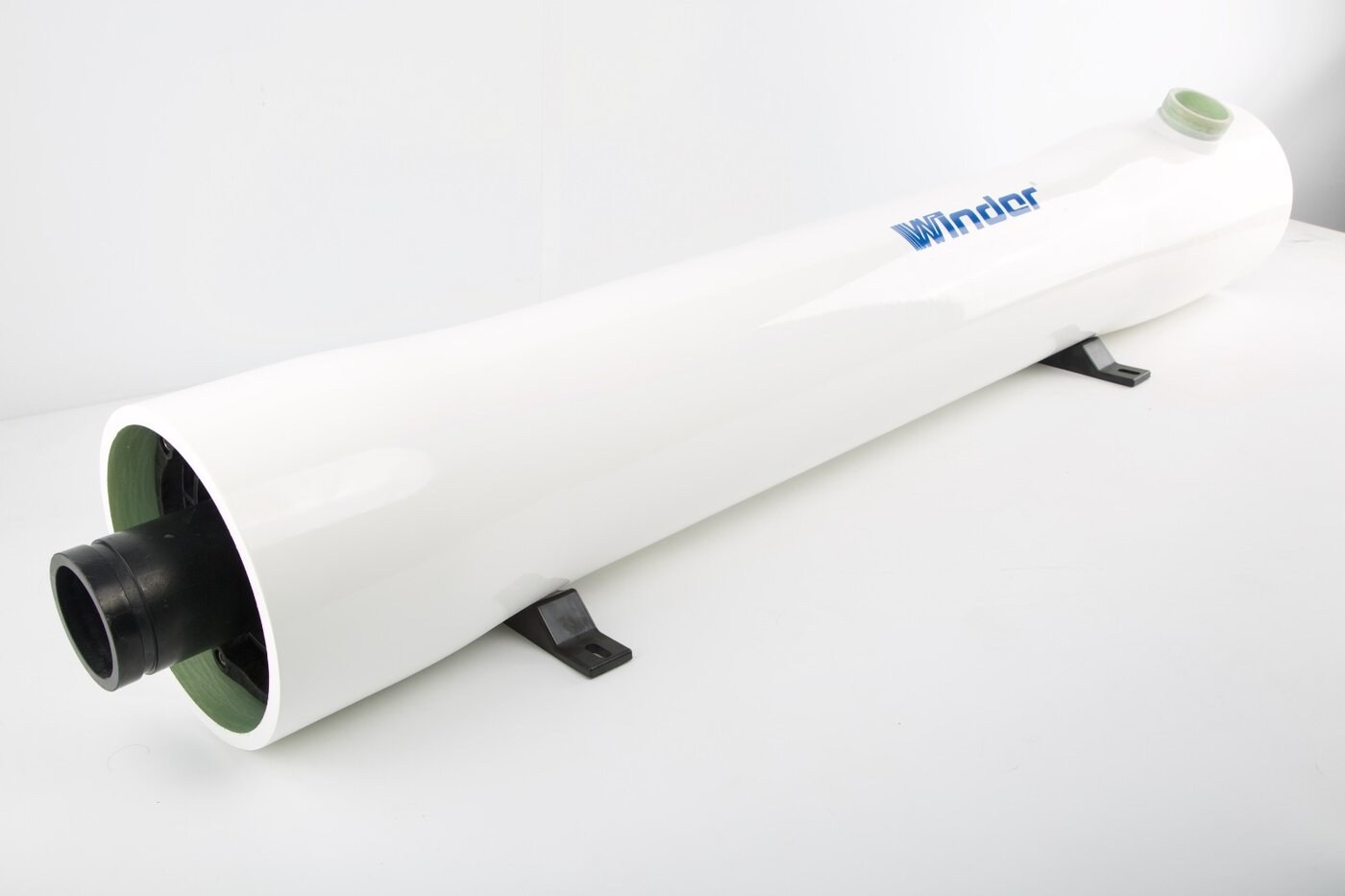

FRP Cartridge Filter Housings — Winder GL80S Series
Horizontal FRP (fiberglass-wound) single-cartridge filter housings rated to 150 psi, compatible with Pall and Parker-type cartridge elements. Available in Side-In/Side-Out, Side-In/End-Out and End-In/End-Out configurations with a baked paint finish for corrosion resistance and a clean, sealed appearance.
- MaterialFRP (Fiberglass Winding)
- Design Pressure150 psi
- Cartridges1 per housing
- Sizes20″ / 40″ / 60″
Pall/Parker compatible
Baked paint finish
Side & end port options
Representative photo
Click a size to select
20″ · PCS
Table 7 · Filtration

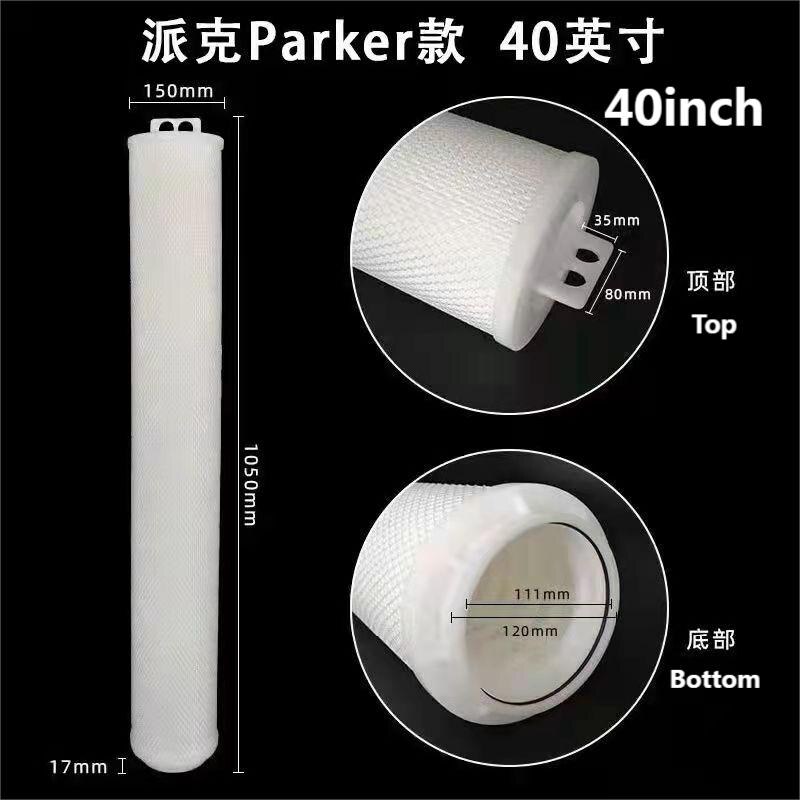

Parker-Type Replacement Filter Elements — 5 Micron
PP/PE non-woven melt-blown cartridge elements rated at 5 micron, sized to fit Parker and Pall-type horizontal housings. High dirt-holding capacity for consistent flow and long service intervals ahead of RO membranes.
- MaterialPP/PE Non-woven (Melt-blown)
- Micron Rating5 Micron
- Sizes20″ / 40″ / 60″
5 Micron rated
Parker/Pall compatible
High dirt-holding capacity
Click a size to select
20″ · PCS
Figure 8 · Multi-Cartridge
W80S Multi-Cartridge Side-Port Housings — SS316
Stainless steel 316 multi-cartridge housings with a side-port design for high-flow pre-treatment. DN40 connections use Victaulic grooved couplings for fast, tool-light installation and maintenance — the same coupling technology as our Model 77C line.
- MaterialStainless Steel 316
- ConnectionDN40, Victaulic Grooved
- ModelsW80S300 · W80S450-5
SS316 construction
Victaulic grooved connection
Side-port access
Representative photo
Click a size to select
W80S300 · PCS
Table 9 · Filtration

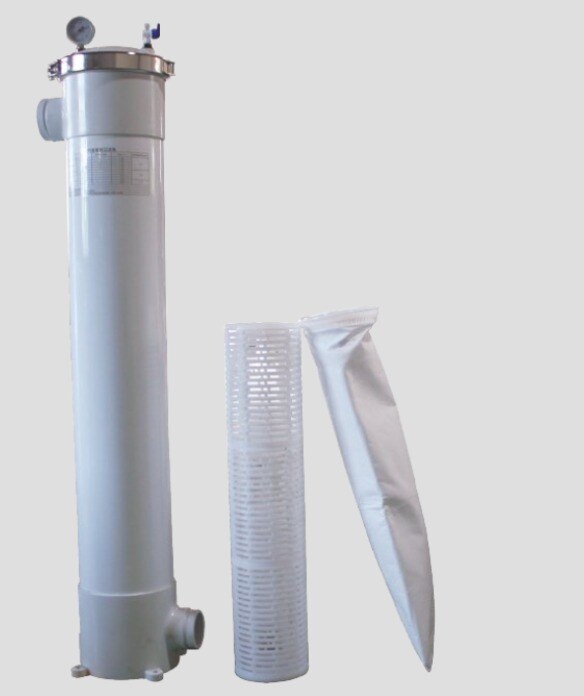

FRP Bag Filter System — WDL-2
FRP bag filter housing paired with 5-micron PP/PE non-woven snap-ring filter bags. The snap-ring design seats and seals the bag against the support basket for a fast, tool-free change-out with no bypass.
- MaterialFRP Housing / PP-PE Bag
- Micron Rating5 Micron
- TypeSnap-Ring Bag
Snap-ring bag style
5 Micron non-woven
Tool-free bag change
Representative photo
Click a size to select
WDL-2 · PCS
Table 10 · Spares

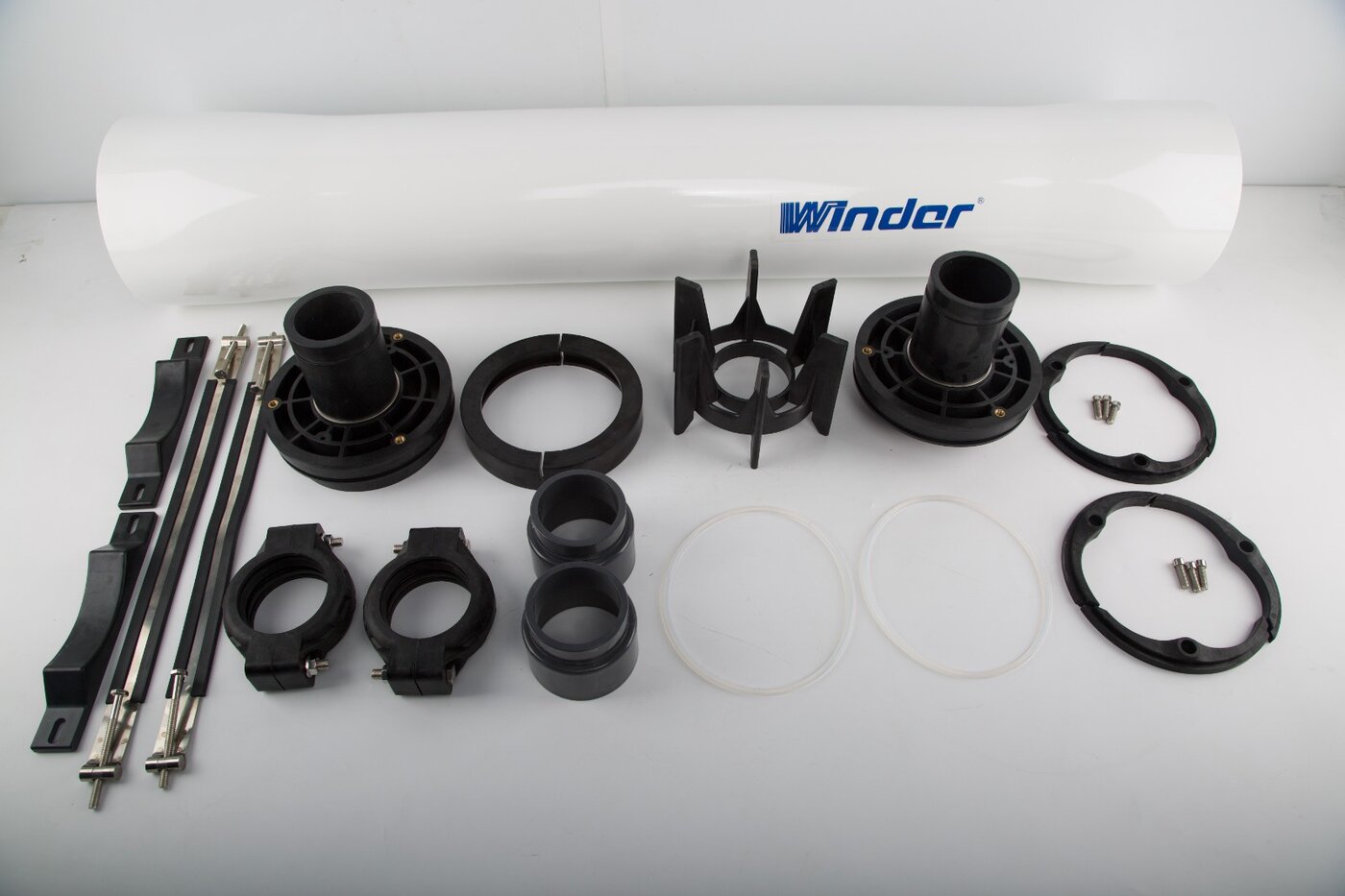

Filter Accessories & Spare Parts
Genuine gaskets, clamps, end caps and installation toolkits to keep FRP and multi-cartridge housings sealed and running — sourced as matched sets for each housing model.
- TypeSpare Parts & Toolkits
- UnitPer set (SET)
OEM matched sets
Gaskets & clamps included
Fast maintenance
Representative photo
Click a size to select
High-Flow Kit · SET
Tell us the part, the size, and we'll quote it.
Pick any size above and hit Email or WhatsApp — your message arrives pre-filled with the exact product, size and spec, so our team can respond with pricing and availability right away.
